Andoer DC8 Portable Guitar Effects Power Supply 8 Isolated Outputs 6 Way 9V 2 Way Adjustable 9V 12V 18V Switching Stabilized Voltage with Anallobar AC100-240V

Choose your country:

Buy at Amazon
  • Overview
  • FAQ
  • Reviews
UPC:601116409543

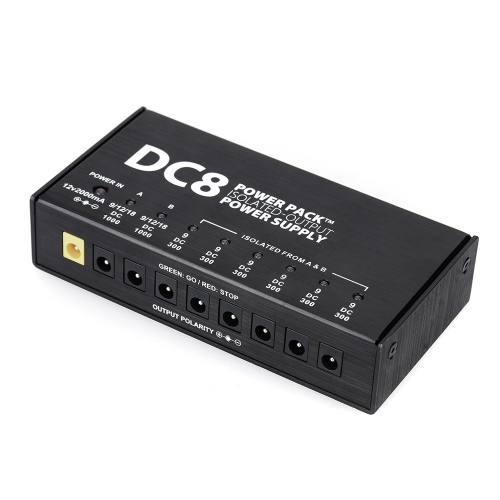

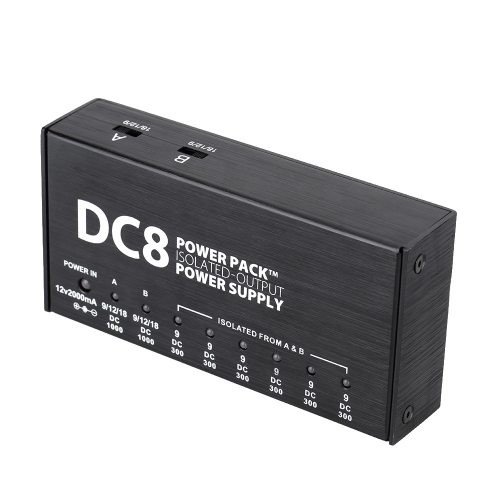

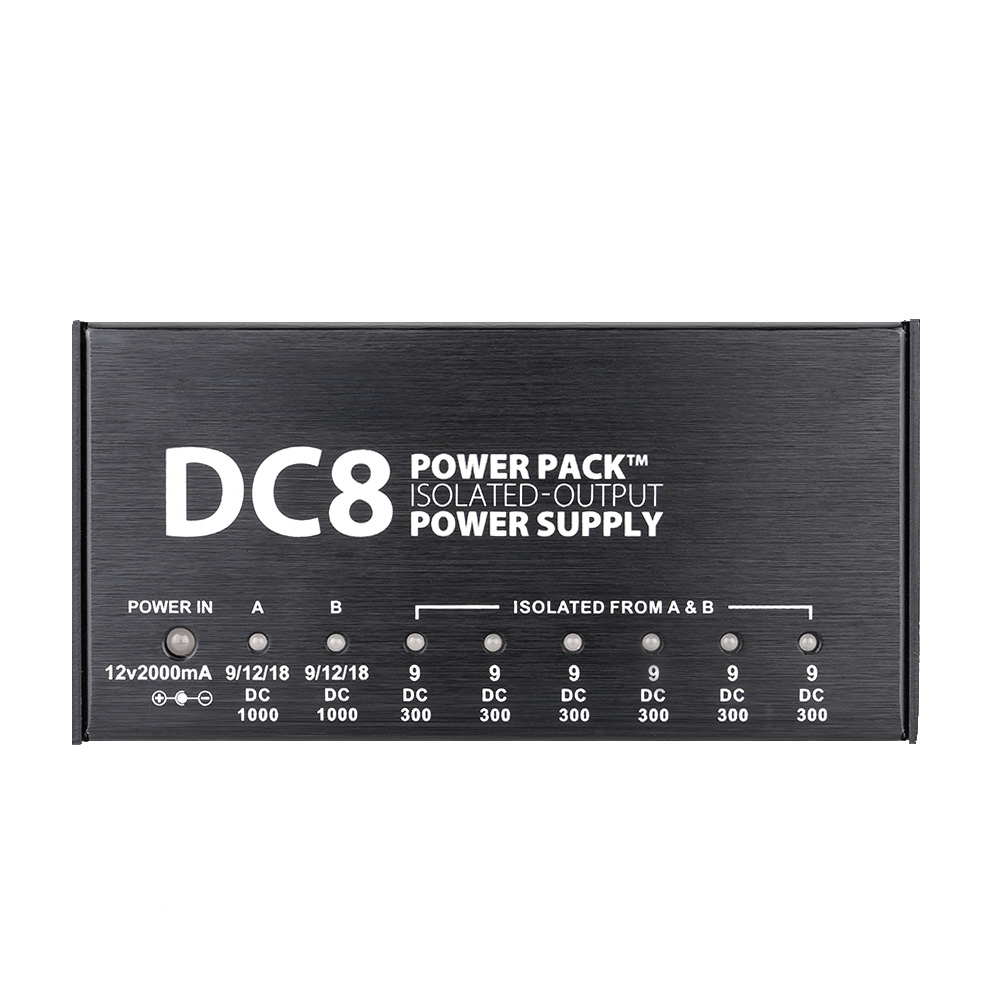

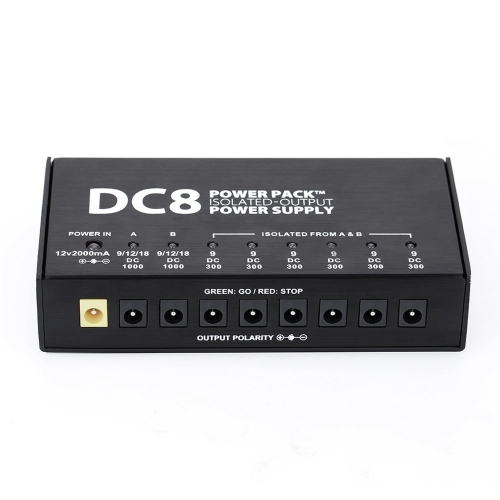

This item with 8 isolated outputs can drive 8 guitar effects from the same source. It supplies a predictable voltage all the time and keeps your guitar effects in constant performance.

Features:
Aluminum alloy housing design, low noise and stabilized voltage supply.
A lightweight power supply with 1 input jack and 8 output jacks.
Six 9V 300mA guitar effects and two adjustable 9V, 12V and 18V 1000mA guitar effects all at once without losing any signal intensity.
LEDs of eight 9V outlets will become green to indicate the normal using mode. They indicate the fault using mode when the LEDs become red, and power supply goes in self-protection mode and it will auto-restart in about 2 seconds once you unplug the short-circuited guitar effects.
Blue LED for power light.

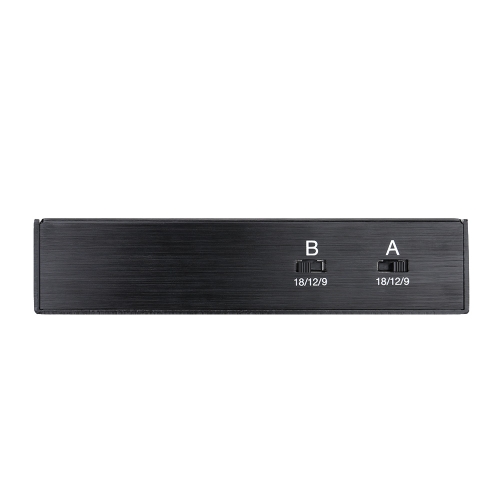

A and B voltage switch special stuck design is for avoiding unintentionally rapid switch to protect power supply.
Foldback current limiting circuit provides ultimate protection against power shortages and overloads to ensures the stable working condition.
Come with totally 8 cables to connect your guitar effects to the power supply, and 1pc of Y cable to boost the voltage.
The guitar effects might come out with a different sound by using such a Y cable.
Enjoy the quiet and cool operation of a fully regulated power supply.

Connections:
1)Plug the included AC adaptor into 12V jack.
2)Connect the AC adaptor to 100-240V AC power, the blue LED will light, if you use other AC adaptors, make sure the output is 12V rated at 2000mA and the plug is positive barrel and negative center type.
3)Connect your 9V guitar effects to 6 9V outputs with included cables.
4)Connect your 9V/12V/18V guitar effects to the A output with included cables.
5)Connect your 9V/12V/18V guitar effects to the B output with included cables.
6)Use the Y cable to connect from any of the six 9V outlets with A or B to get the right voltage for your guitar effects.(Voltage will boost at 18V, 21V and 27V under such a connection)
7)Use the Y cable to connect A and B to get the right voltage for your guitar effects.(Voltage will boost at 18V, 21V, 24V, 27V, 30V and 36V under such a connection)

Specifications:
Material: Aluminum alloy
Colors: Black
Power supply input: 12V 2000mA
Power supply outputs: 9V 300mA (*6), 9V/12V/18V 1000mA (*2)
Adaptor input: AC 100v-240V at 50/60Hz
Adaptor output: 12V, 2000mA
Adaptor plug type: US / UK / EU / AU (optional)
Item Size: 14 * 3.1 * 7cm / 5.5 * 1.2 * 2.7in
Item Weight: 246g /8.7oz
Package Size: 19.5 * 13 * 9.5cm / 7.7 * 5.1 * 3.7in
Package Weight: 702g / 24.8oz

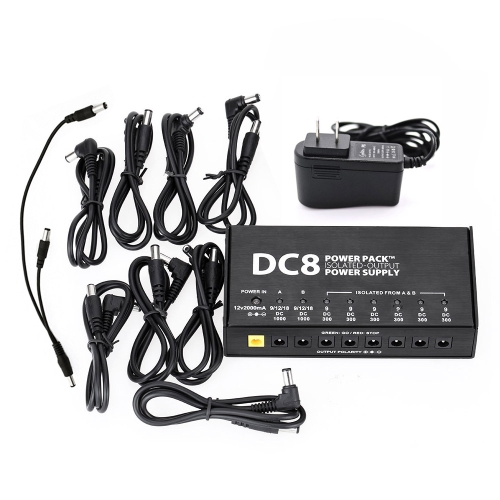

Package List:
1 * Power supply
1 * Adaptor
1 * Y cable
8 * Cables

Notice:
Polarity is positive barrel and negative center.
Do not put or use in waterish locations which might cause circuit shorted or other electric dangers.
Do not use any other adapters different from the requested ones as above, or there might cause harm to the unit, the adapter or you.
Guard against water or other liquids entering the enclosure.
